BAJA Designs Squadron 2.0 Wiring Harness Install

[pnutbtrgallo]

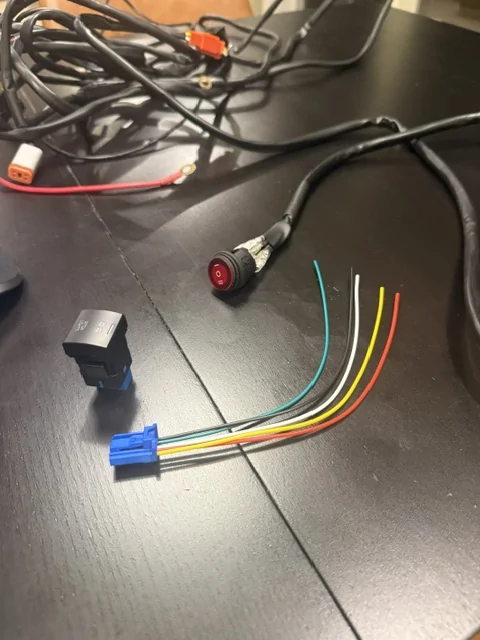

Looking for some assistance on installing the wire harness for these Ditch lights. Purchased through CBI but didnt recieve any instructions in how to install anything. The brackets and lights are not the issue but the wiring harness has me confused.
I have 26 Toyota Hybrid Platinum
I also purchased the Cali Raised OEM ditch light switch to install but not sure how to connect the wiring properly.
Any help would greatly appreciated

Sponsored



[pnutbtrgallo]



[Suprasport00]

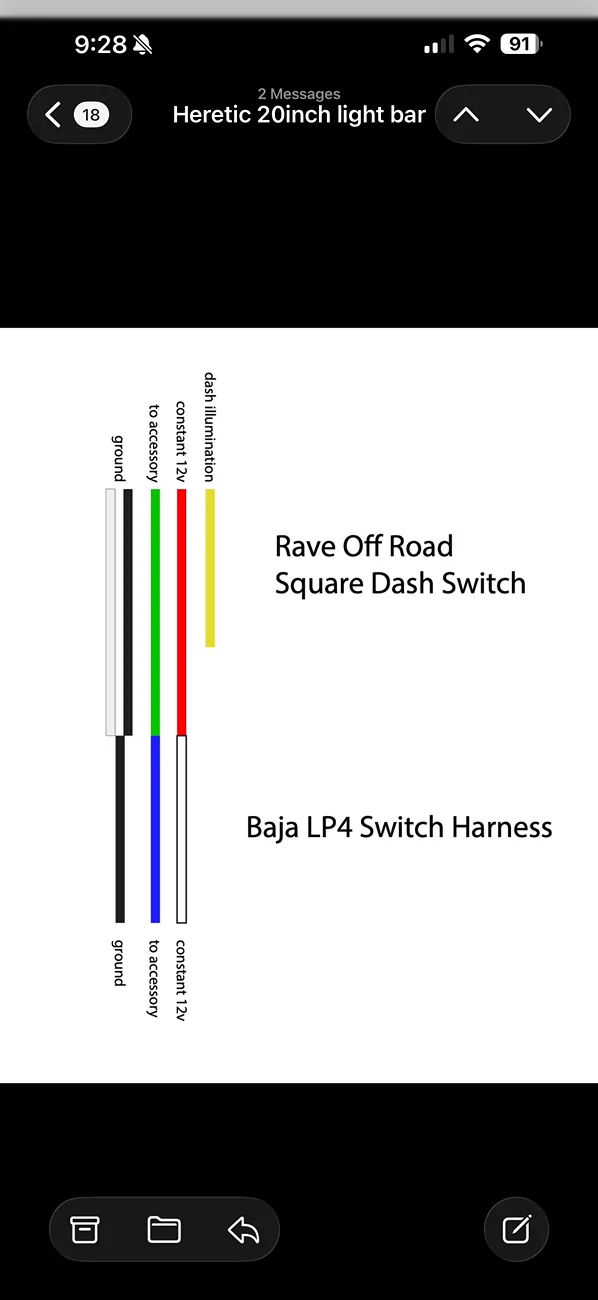

This is from rave which appears to be the same



[pnutbtrgallo]

Thanks for info, it helped out alot. The only issue is connecting to fuse box on my hybrid, I can not get the positive terminal connected, the set up in mine is different i cant remove the side post.....
Hybrid Vehicles ONLY Remove the passenger side fuse panel cover and locate the positive battery wire and post (boxed). Using a 12mm socket, remove the nut holding down the wire and release the tab to the right of the post. Lift to remove the wire and plastic wire cover. Twist to pull apart the top of the plastic cable cover until it resembles photo. Using a flat head screwdriver, release the 2 tabs on the bottom of the plastic wire cover until the two halves separate and remove them from the wire. Discard the piece that the wire terminal runs through. Replace the battery cable and install the positive (red) ring terminal of the main wiring harness onto the post. Replace the upper battery cable cover, reinstall the 12mm nut and replace the fuse box cover.
https://www.bajadesigns.com/wp-content/uploads/Installation Instructions/FGXX_44-0015-INS_001.pdf
