The following install write-up was posted by user @UndergroundTRD at sister-site Tacoma4g (link) and should be helpful/applicable for similar light setup on the 2025 4Runner TRD Pro.


Light bar options

I finally received the TRD Pro grill after a 40 day wait due to back order. I did my research while waiting and decided to go with the Heretic light bar instead of the Baja or Diode. The Baja option you need to trim some plastic of the grill in order for it to fit properly, something I didn’t want to do in case I wanted to swap out the light bar in the future I needed all the grill mounting points to be uncut. The Diode bar is 18” inches, when installed it leaves a 1” inch gap on both sides which didn’t look OE to me. The Heretic light bar was an exact fit for the grill, no need to cut or anything. You can buy the brackets from Rave Off Road but I think they only sell as a kit not sure if they will sell only the bracket.

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6056-jpe



Light bar mounting

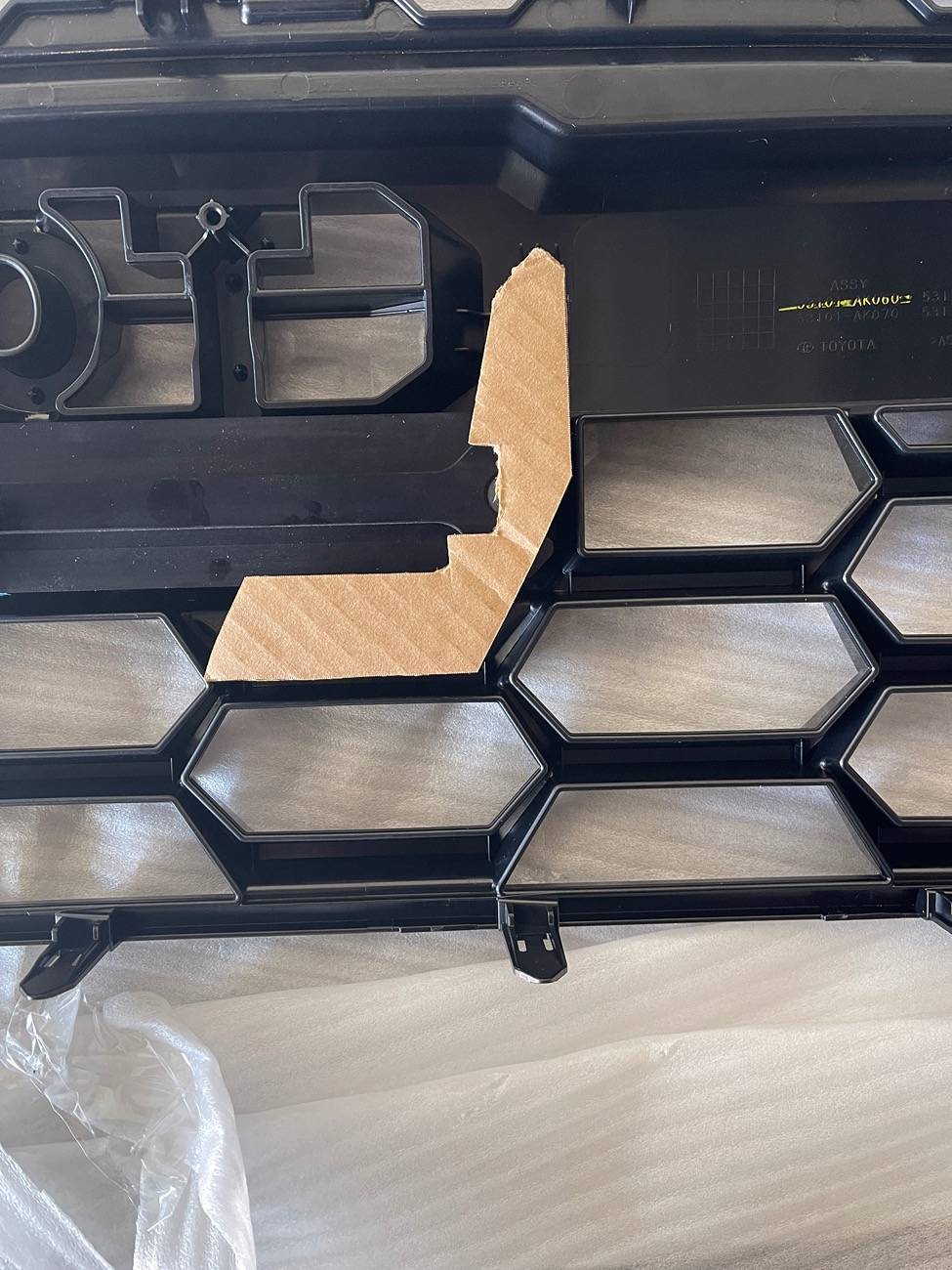

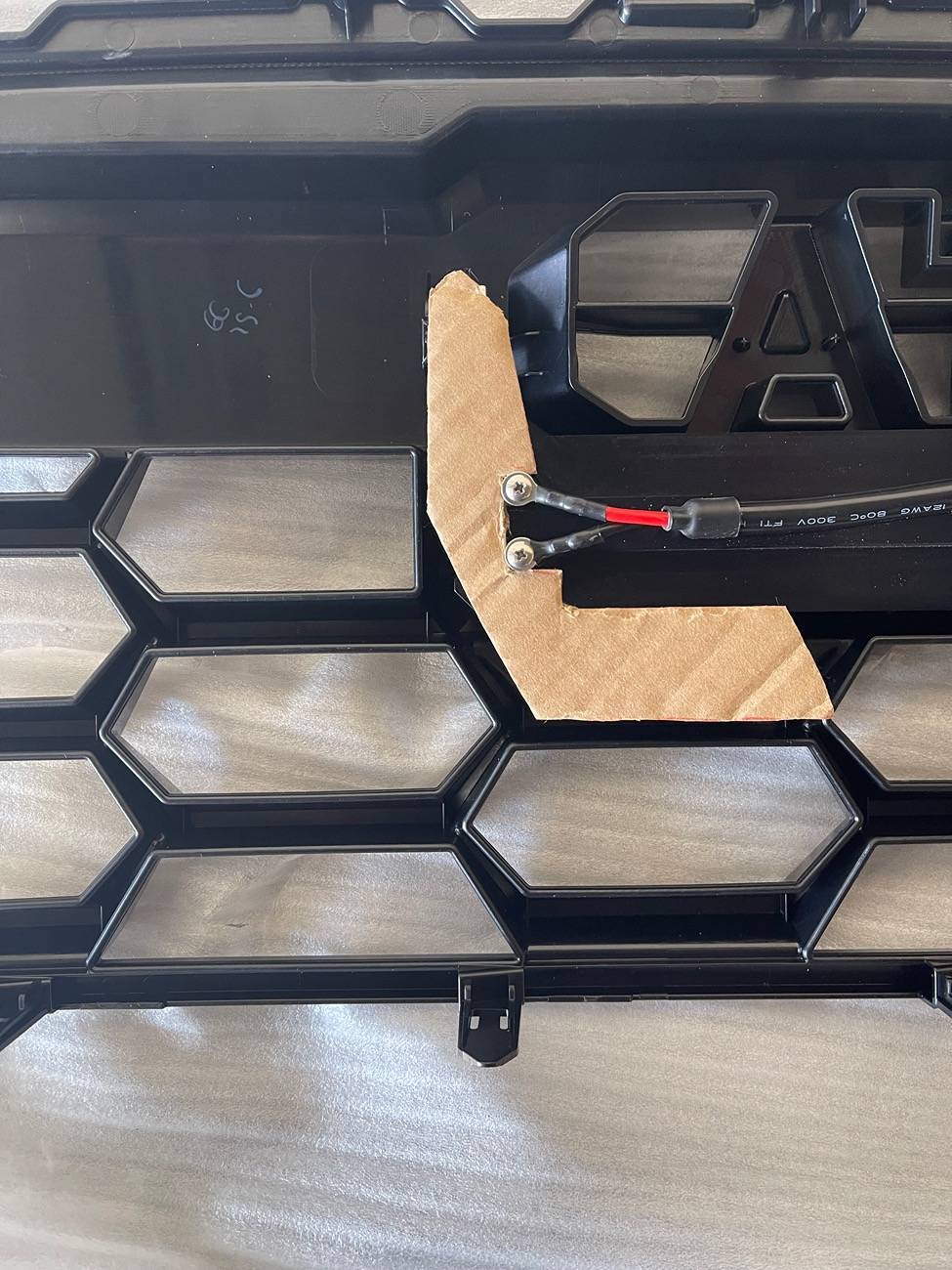

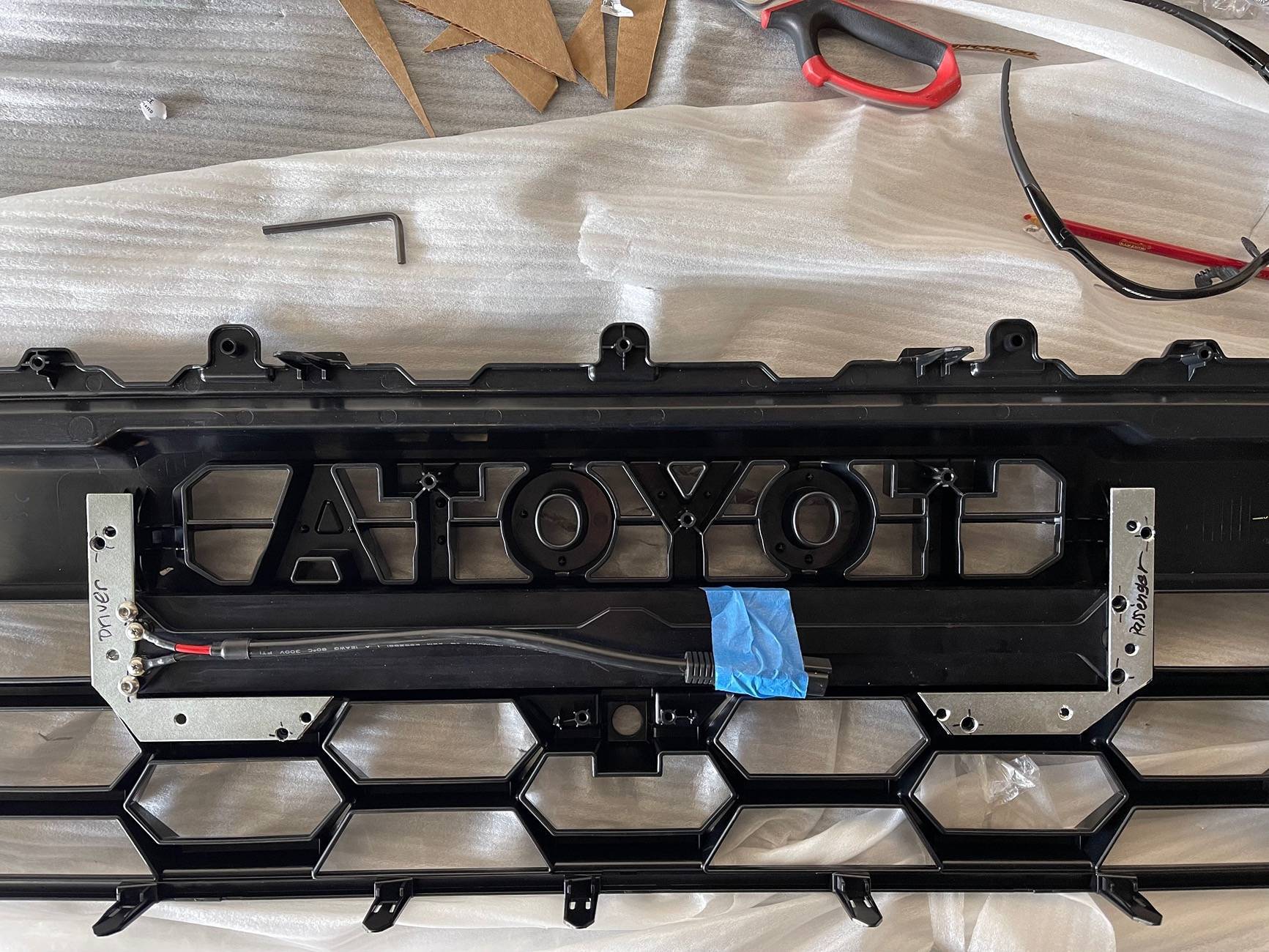

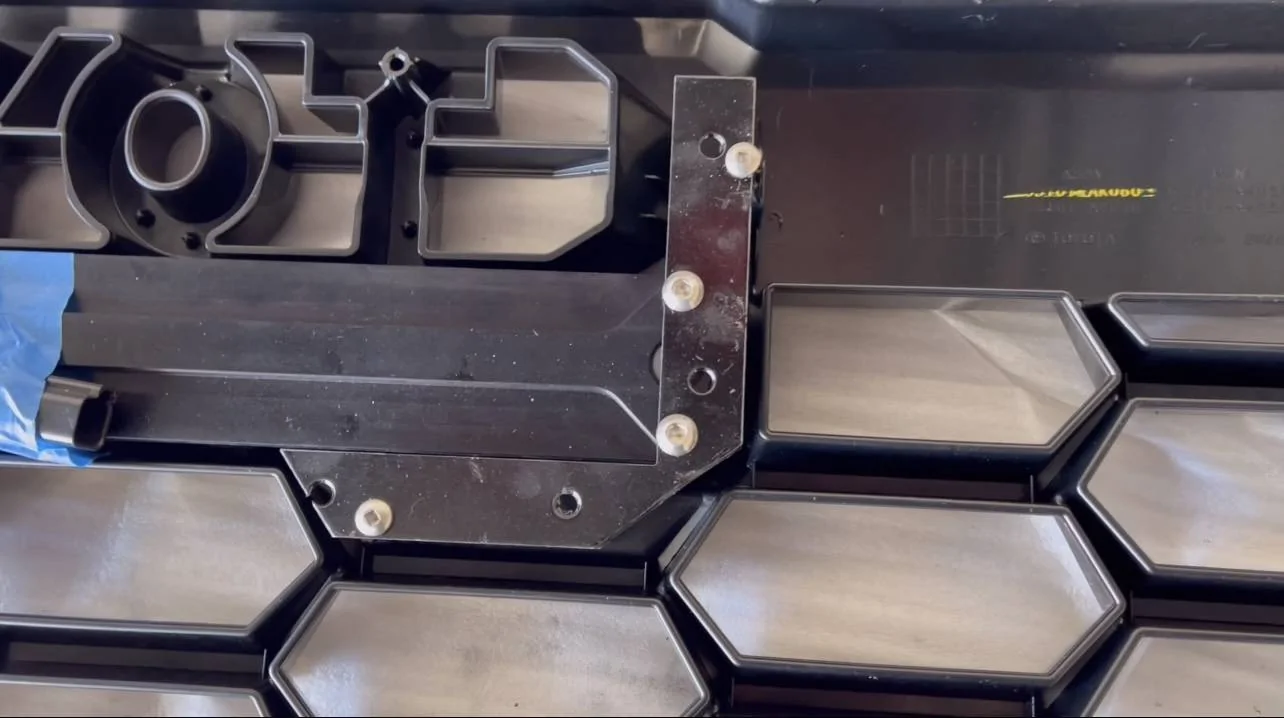

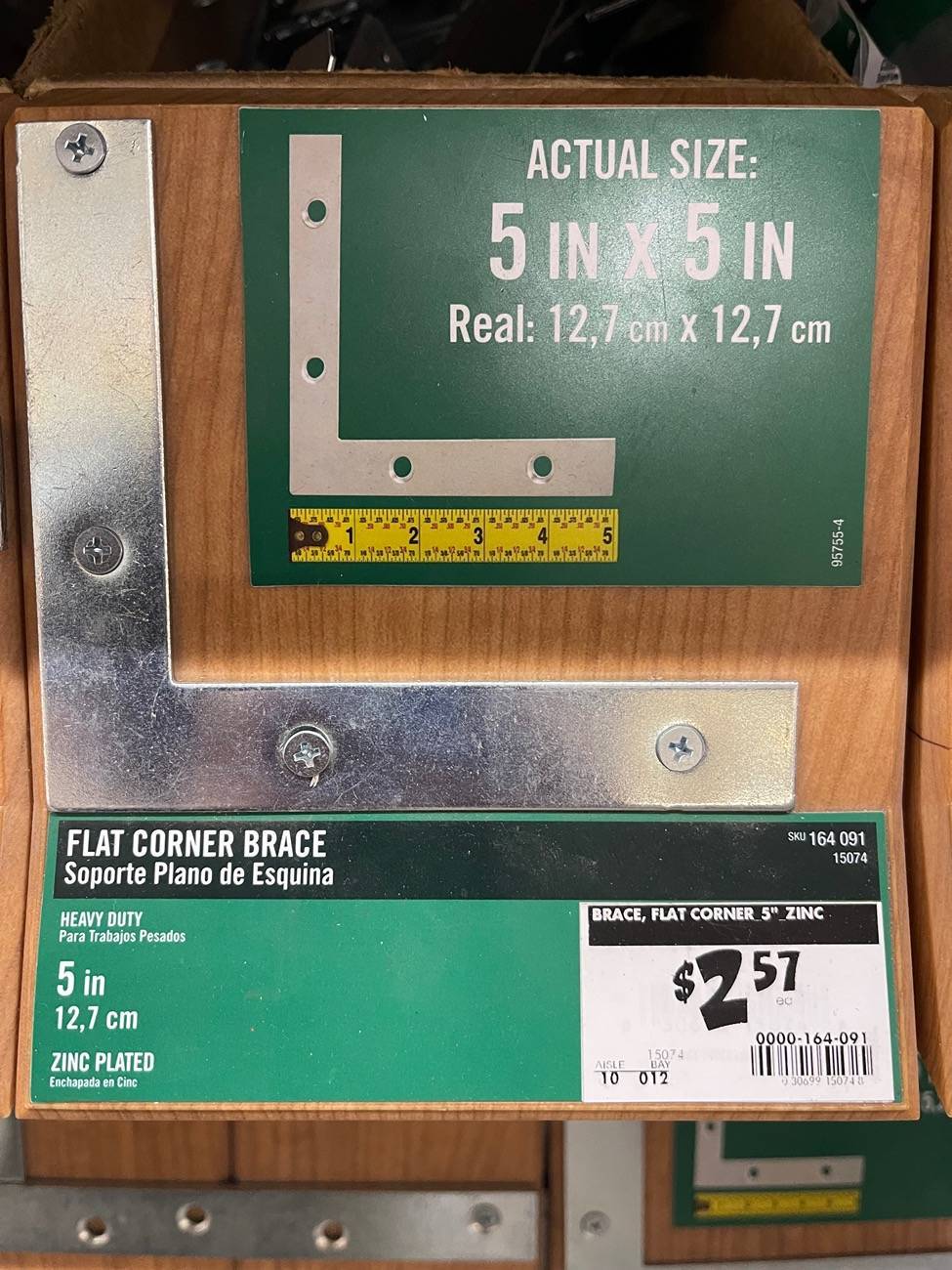

I decided to make my own brackets since the mounting points are pretty simple. I started with a piece of cardboard and began cutting until I was able to match all the mounting points from both the grill and light bar. I went to Home Depot and bought two 5 inch L shape brackets and cut them accordingly. I just sprayed painted them black to avoid rust and to give it a cleaner look and done.

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_5937-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_5940-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_5942-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_5953-jpe

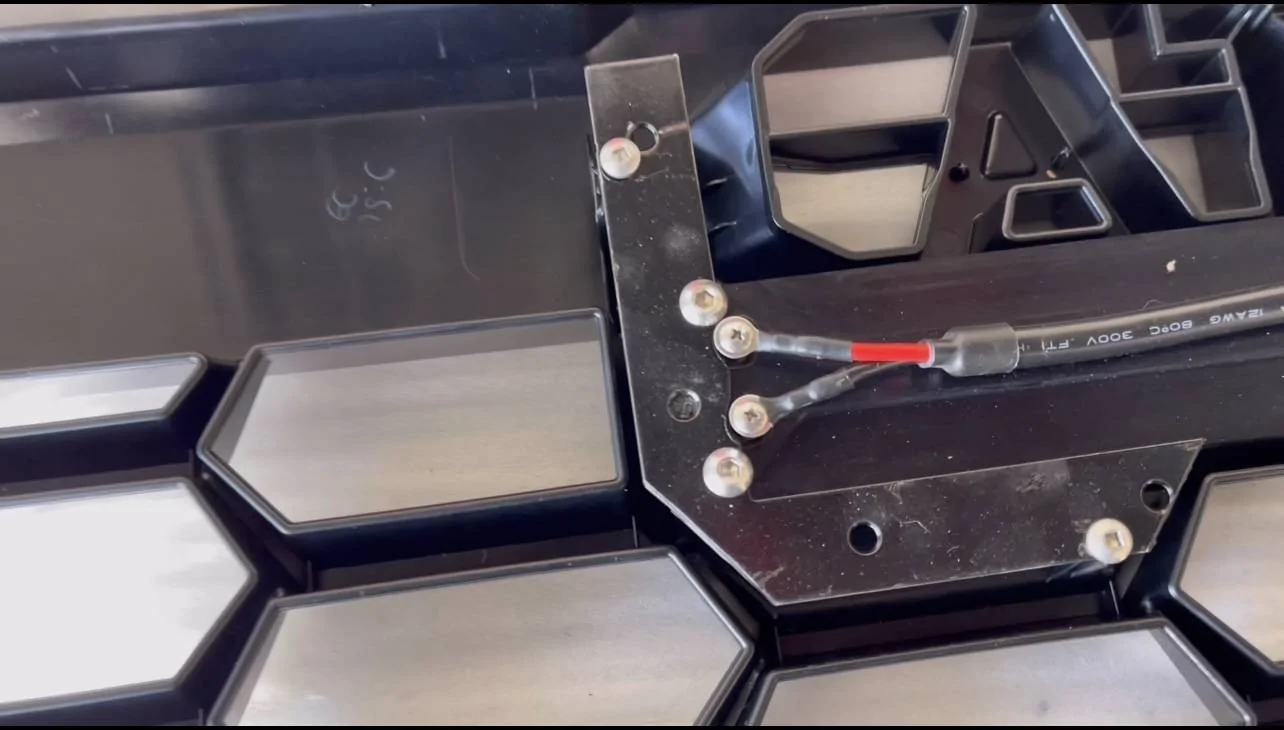

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6044-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6045-jpe



Light bar wiring

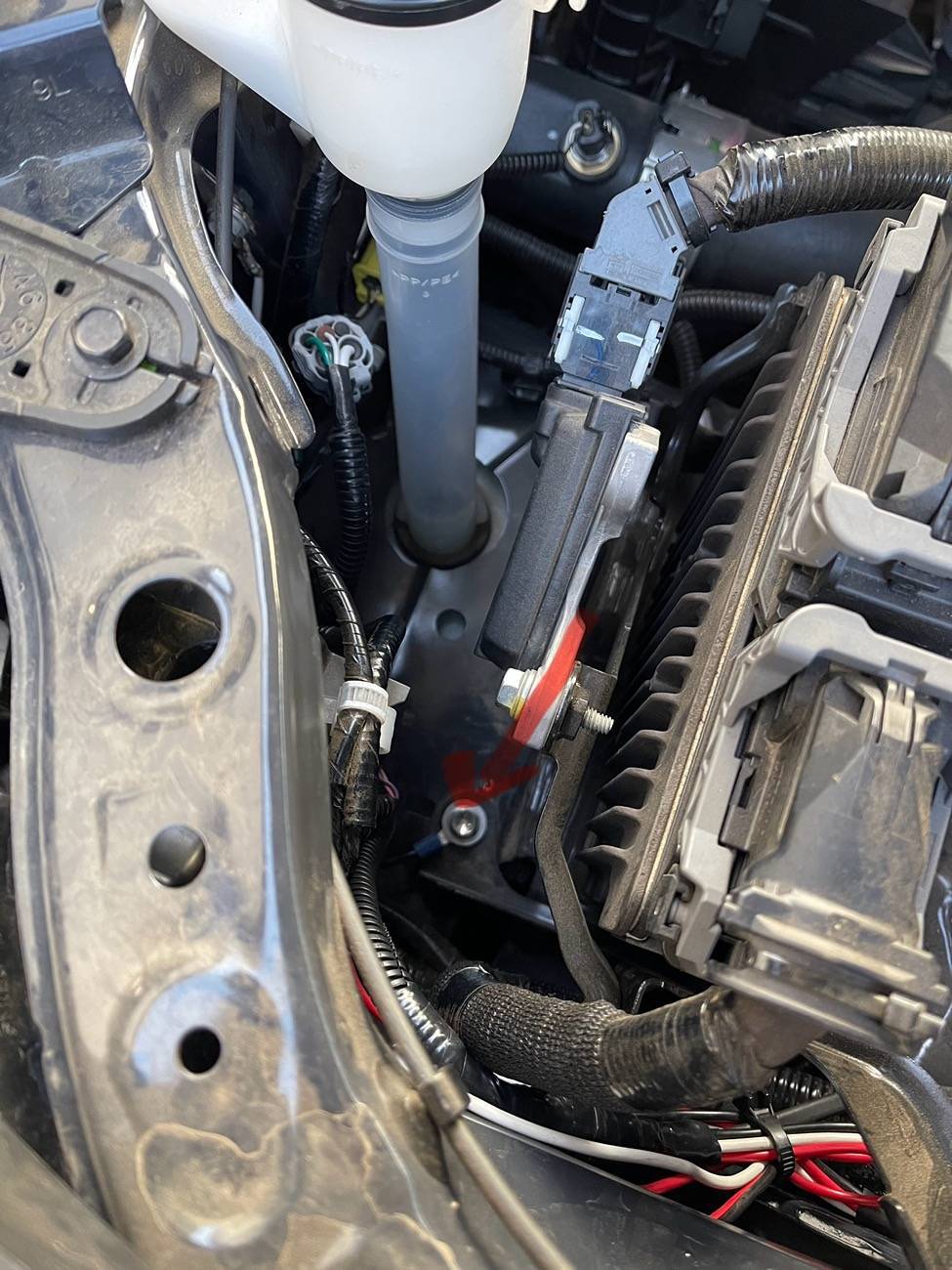

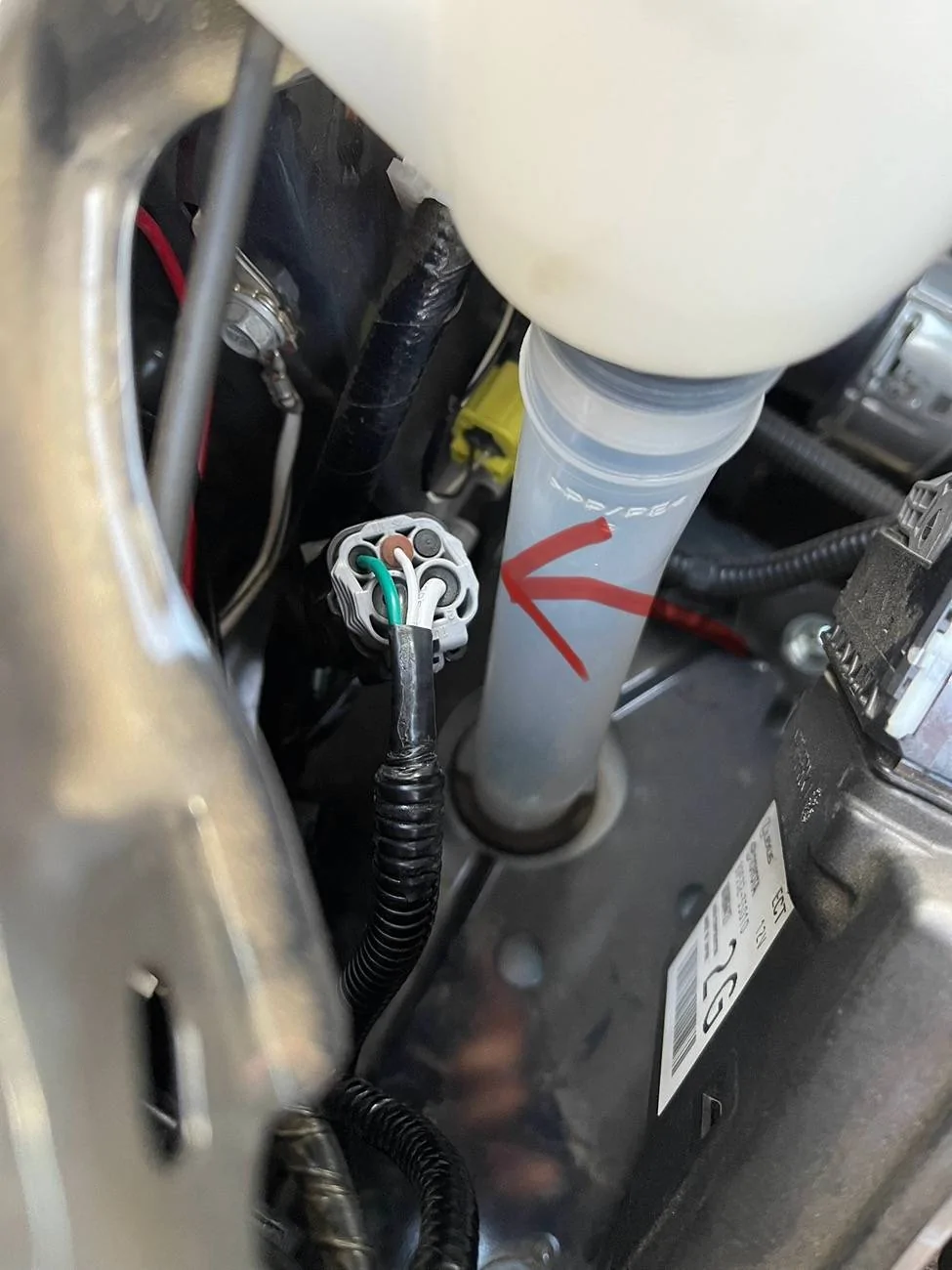

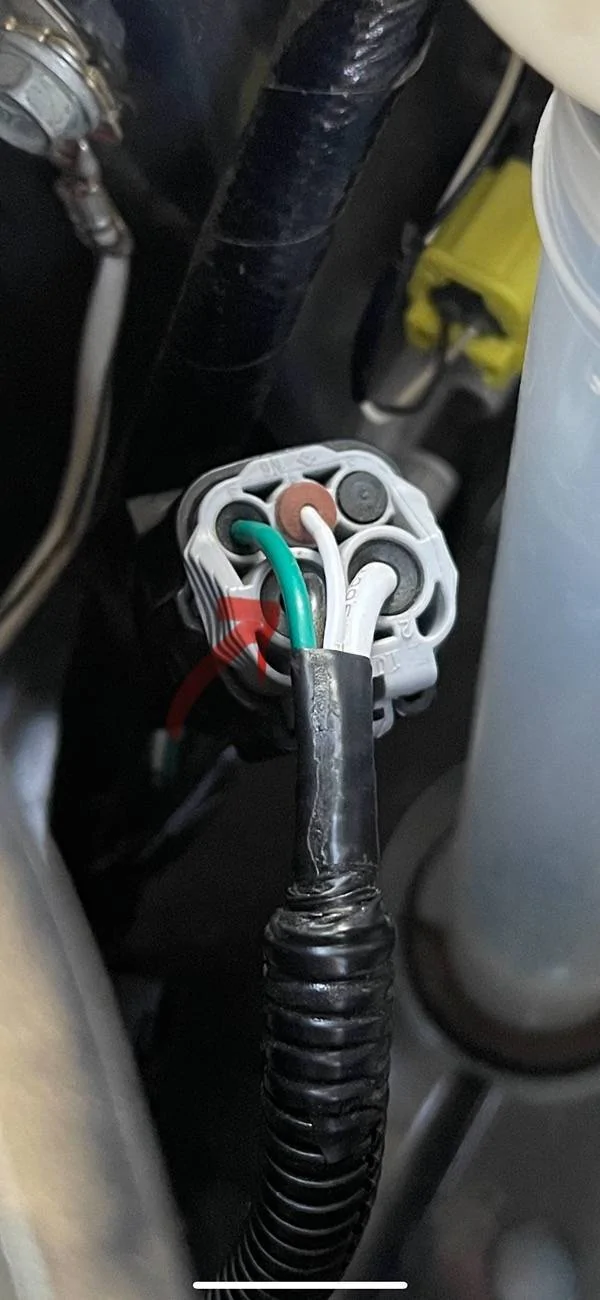

I wired the light bar into my factory 15 amp Aux switch. The factory pigtail is located next to the windshield washer fluid reservoir, it’s the all black cable within the pigtail. The light bar only had 2 wires a positive(red) & ground(black). I just had to connect the positive from the light bar to the black wire in the pigtail, then connected the ground from the light bar to a grounded screw nearby.

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6053-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6055-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6054-jpe




Baja S2 sport

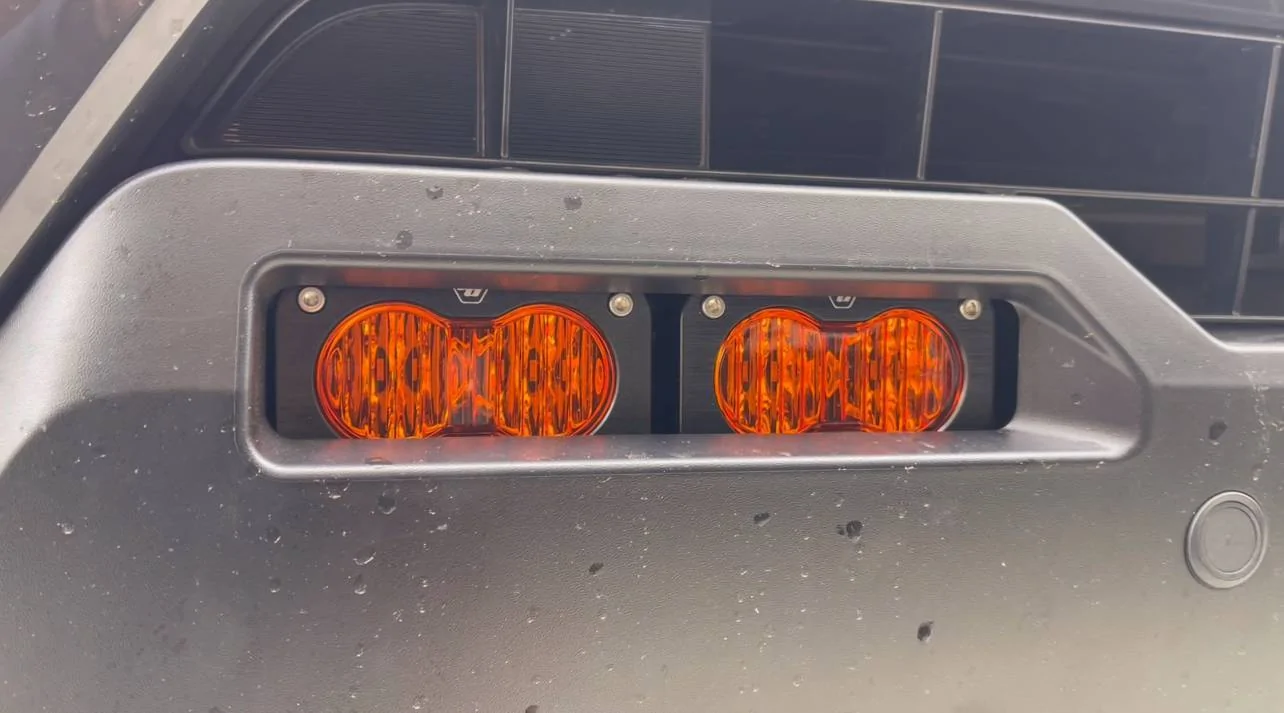

I decided to go with the Baja S2 sport because of the serviceable items and interchangeable lens. They were a bit frustrating to install because of all the assembly required since you pretty much need to assemble your own kit from the package Baja sends you. The wiring Baja provided made that part simple and easy. It all plugged into the original harness which your able to turn on/off the lights by using the original fog light switch.

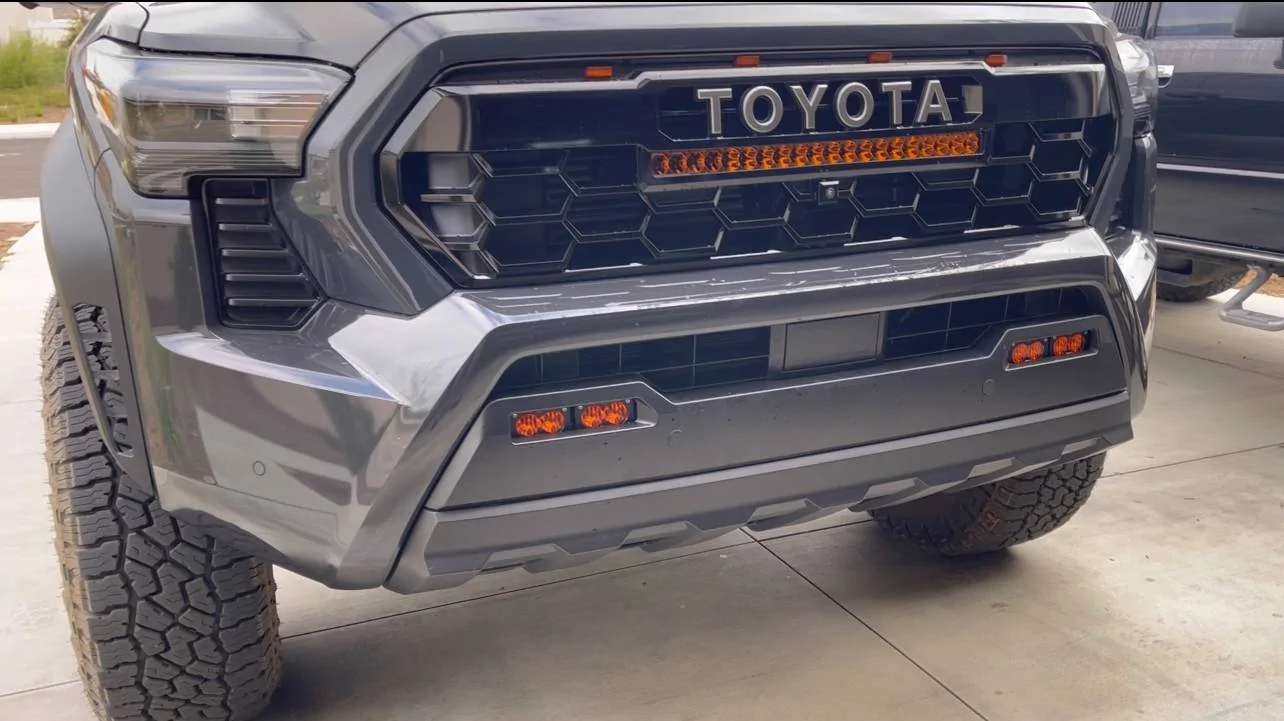

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6046-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6047-jpe




Raptor style lights

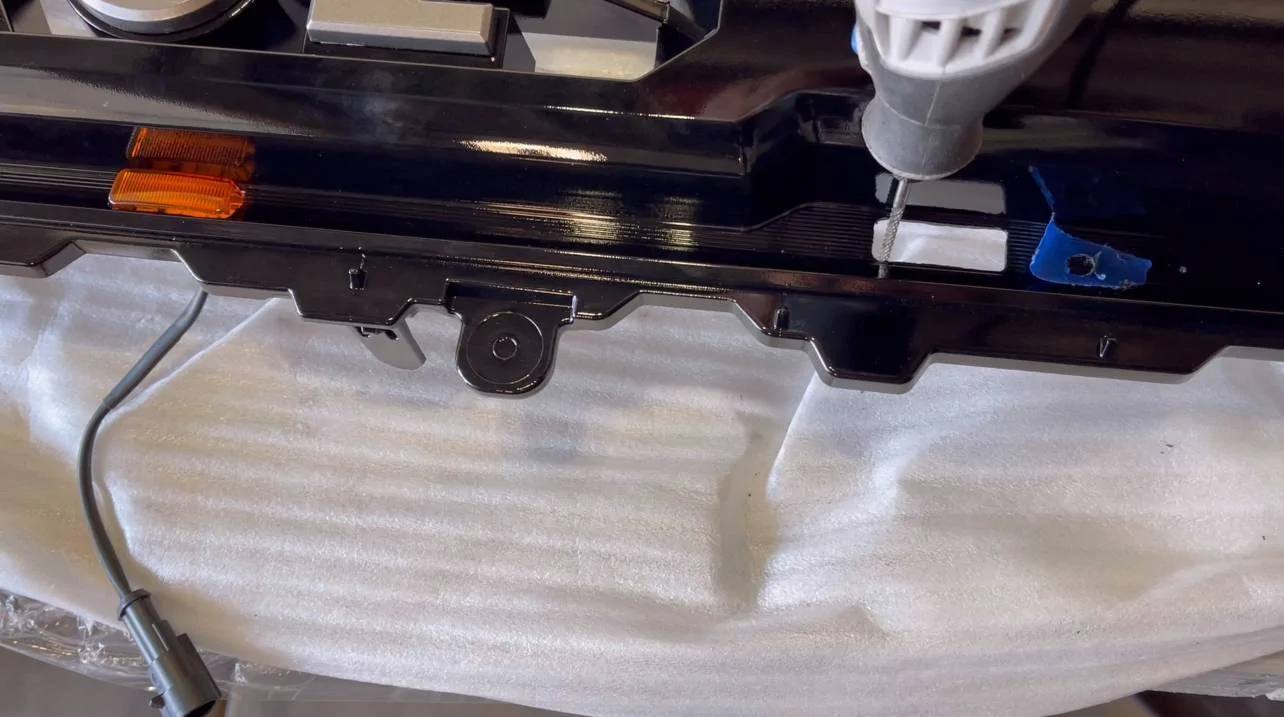

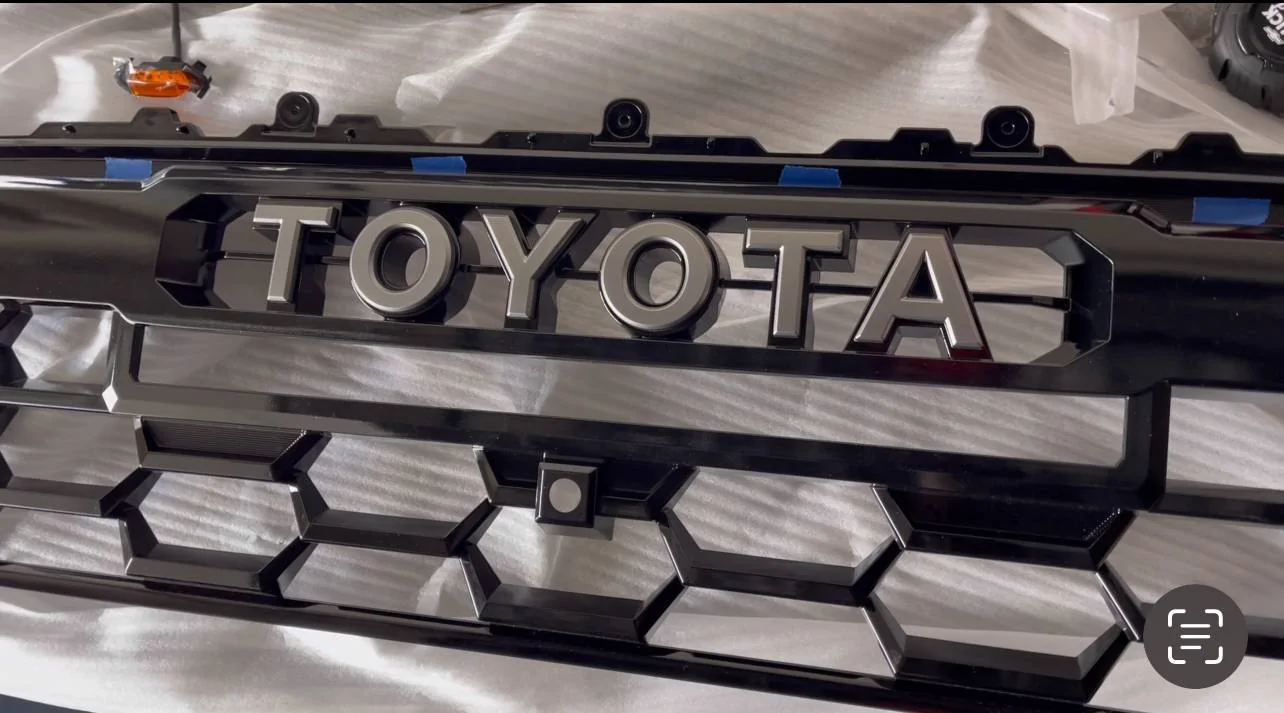

I had installed these exact lights on my original trd off road grill that the vehicle came with. I spaced them 8.5 inches apart since the grill is wide enough to pull it off. I run these lights as my DRL for added safety plus they look nice. They are tapped into a fuse that is on when the truck is on. This 2nd time around I decided to mount the lights from the inside the grill vs the previous method which were mounted from the outside the grill. This definitely is the cleaner install as it looks like the grill would have came this way. I made the first cut for each light using the smallest drill bit and increased 2 sizes. Once I was able to fit the diamond drill bit in my Dremel I began to slowly and patiently cut the rectangular shape of the led to make the light fit snug. Bought them from Amazon, brand is Seven Sparta.

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6048-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6049-jpe

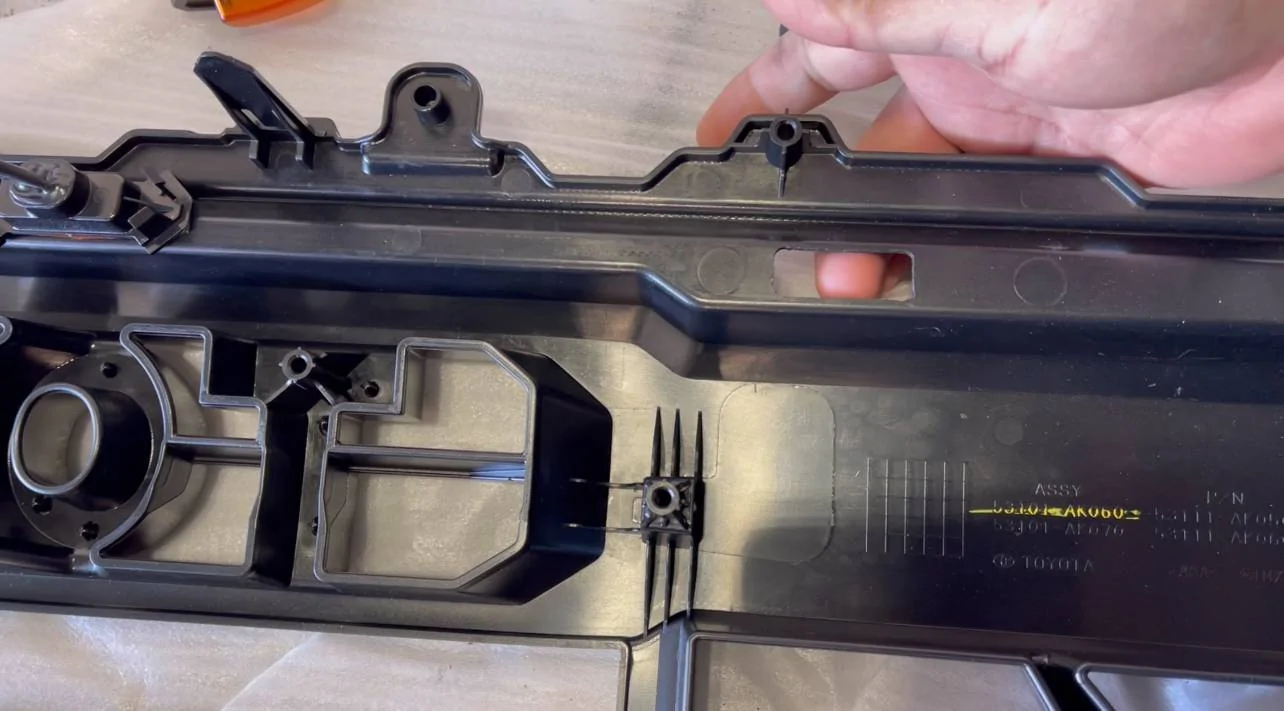

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6050-jpe

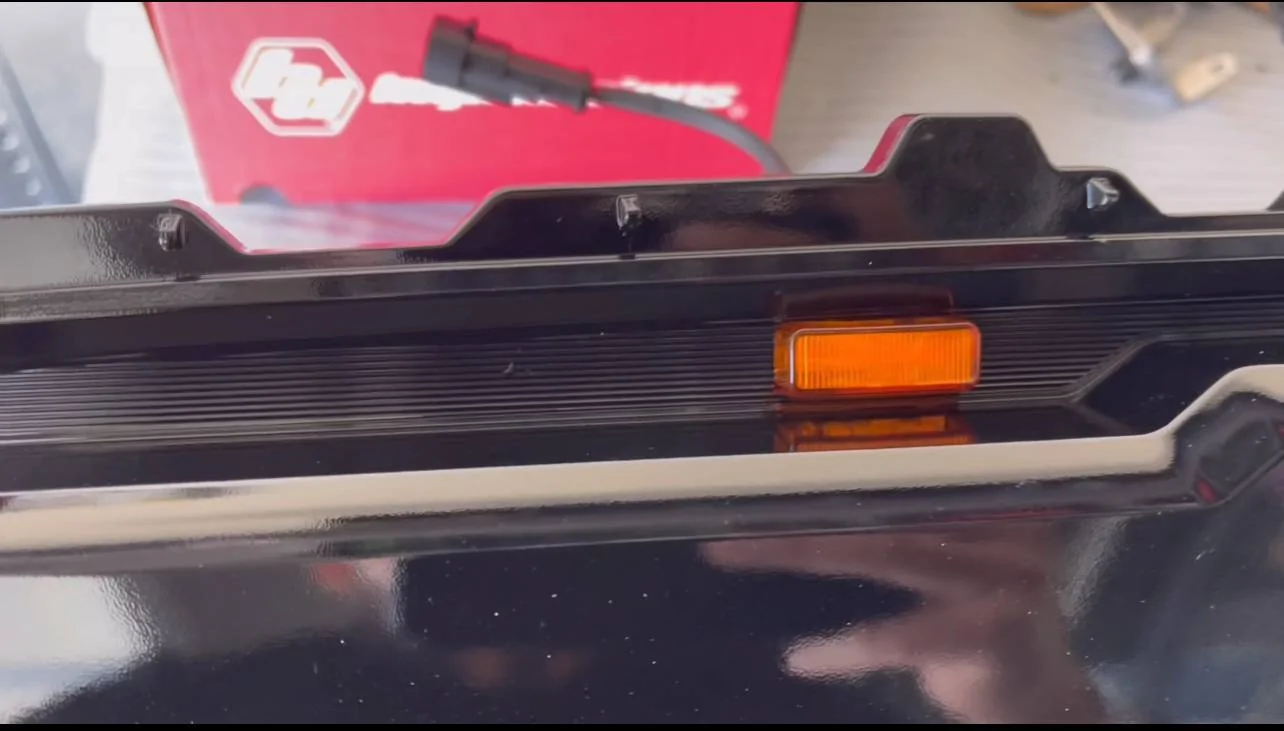

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6051-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6052-jpe

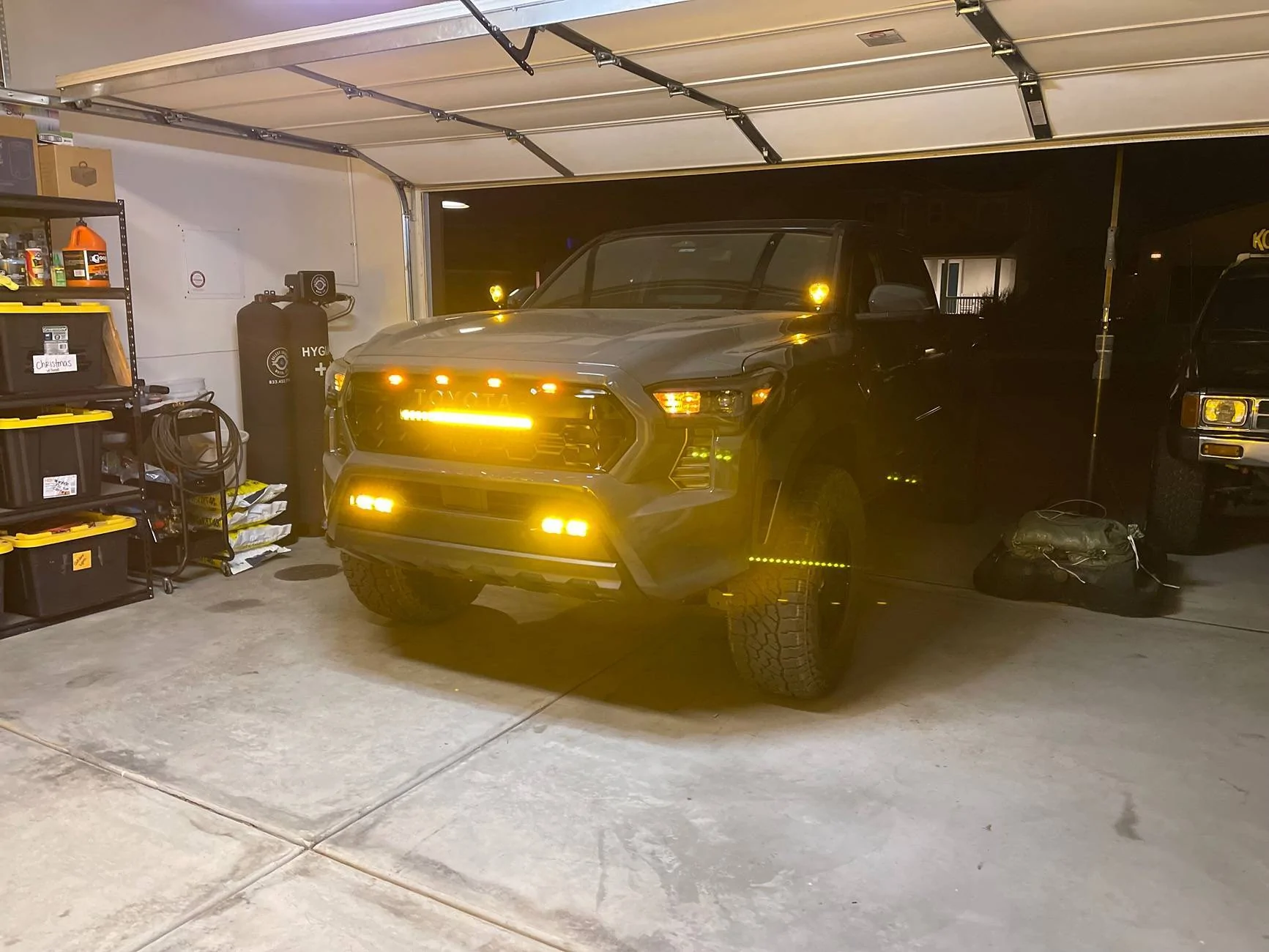

Outcome

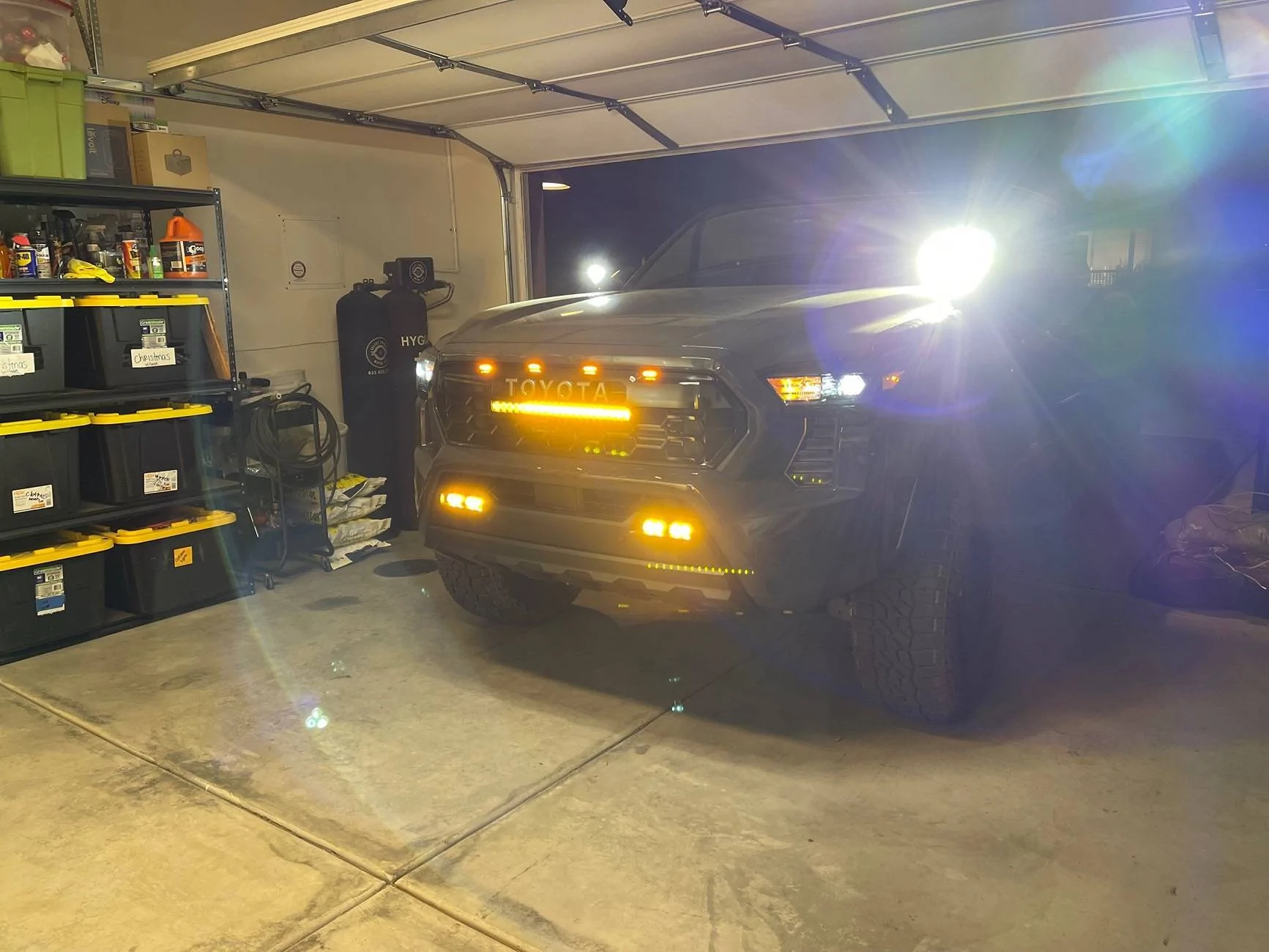

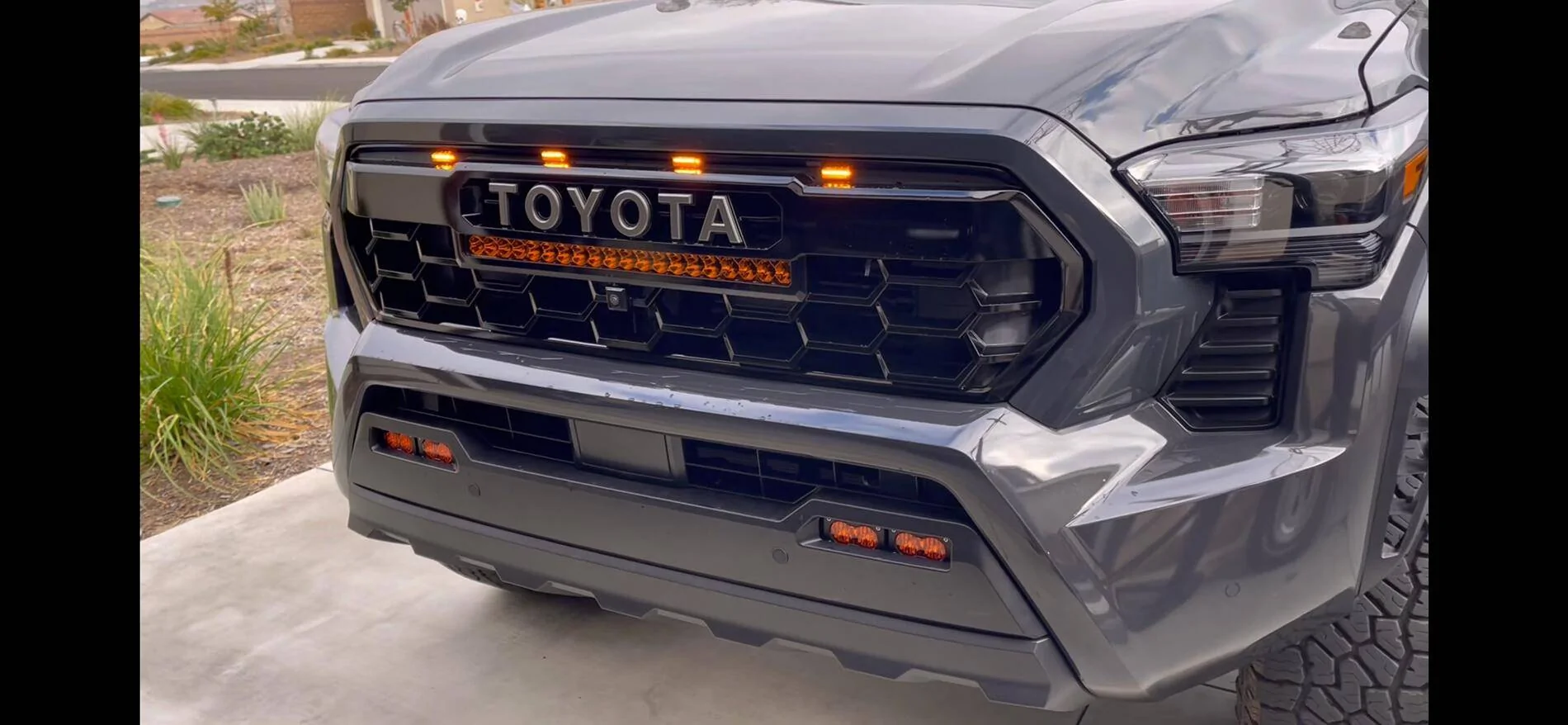

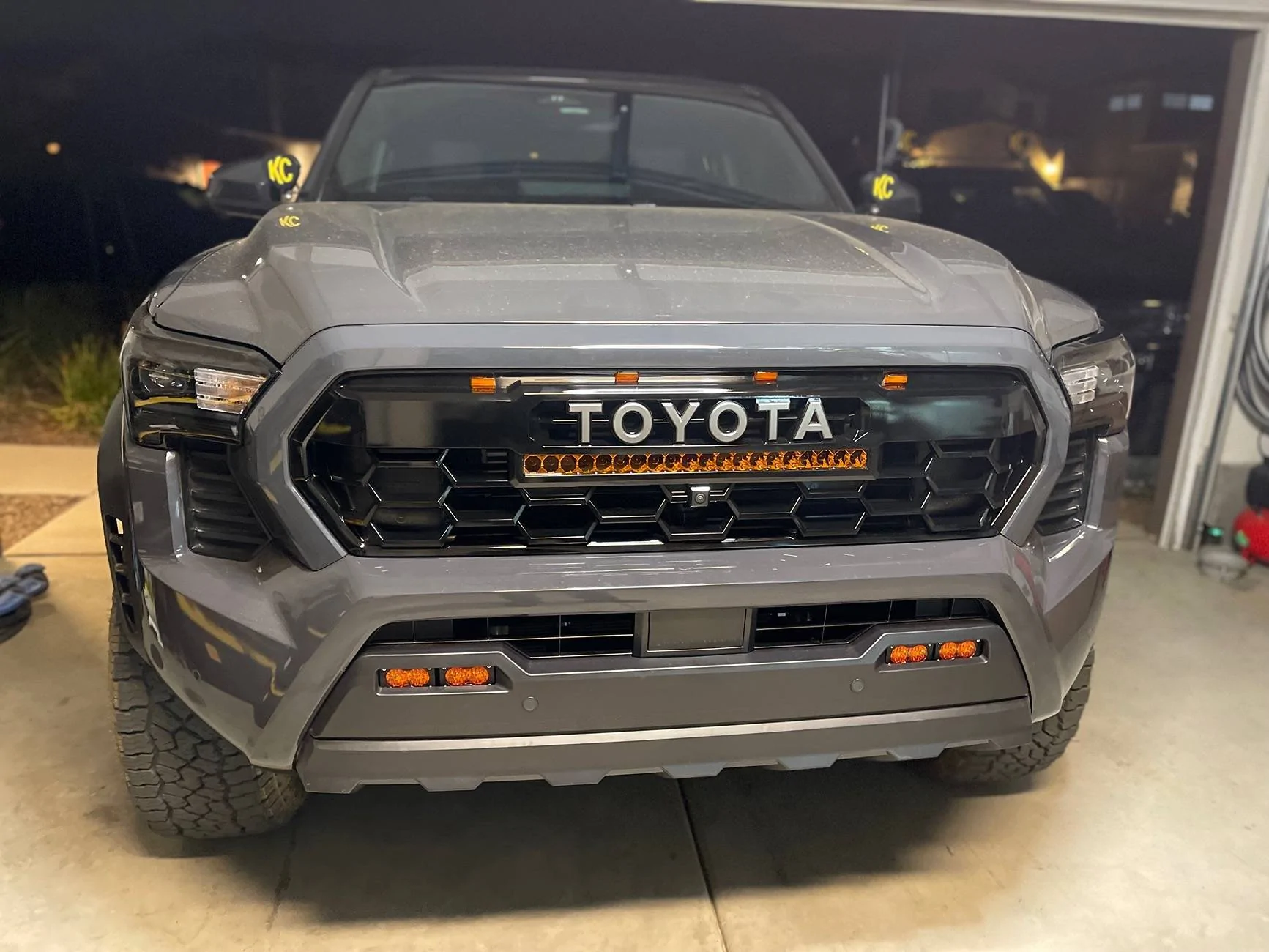

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6011-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6039-

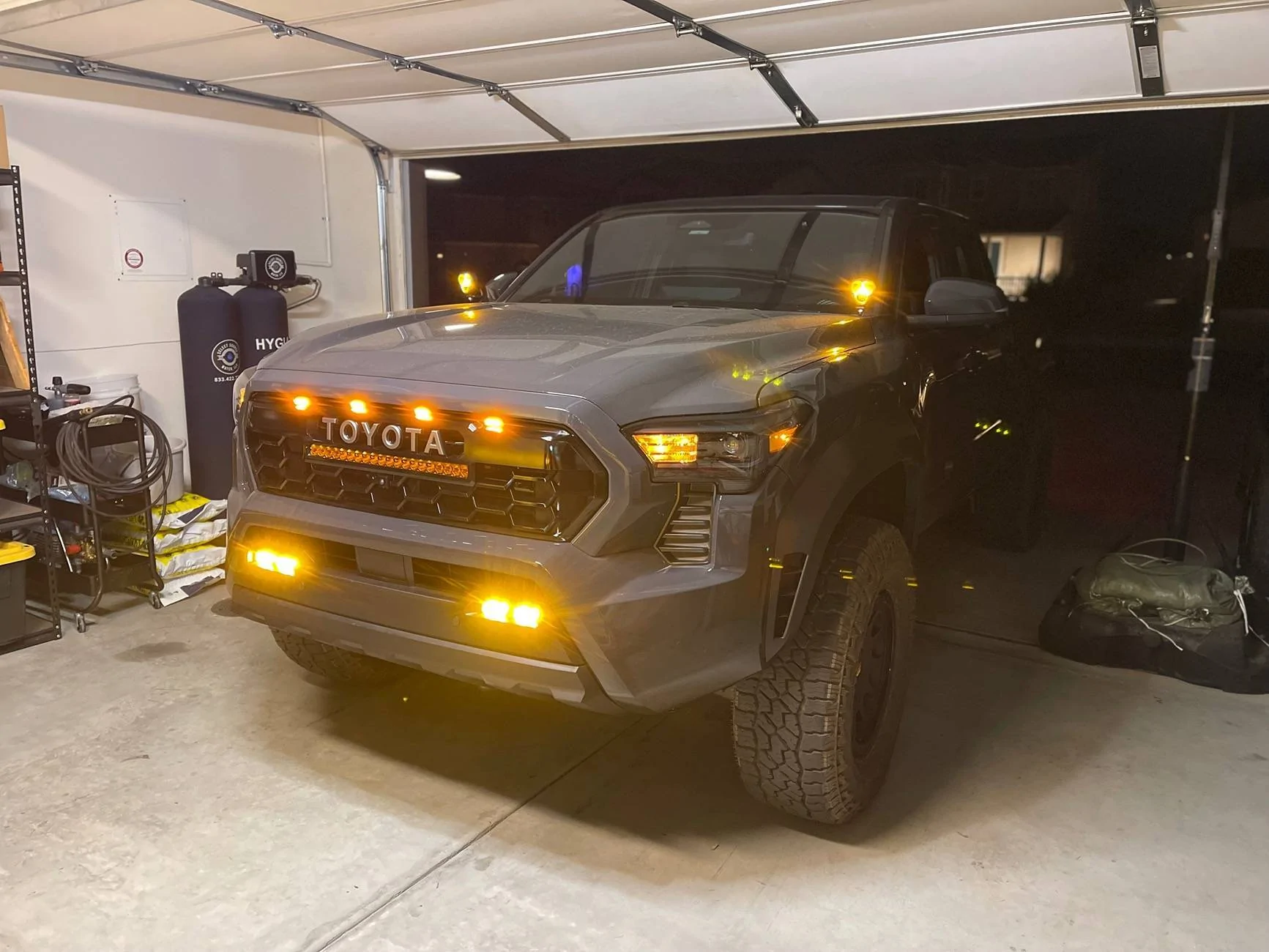

2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6013-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6016-jpe


2025 Toyota 4runner Heretic light bar, Baja fog lights & Raptor aftermarket lights installed in TRD Pro grill img_6021-jpe
